Category: INDIRECT AND MIXED ACTION SOLENOID VALVES
Ways: 2/2
2/2 WAYS NORMALLY CLOSED SOLENOID VALVES MIXED ACTION
OPENABLE FOR INSPECTION
GASKET SEAL IN NBR
EPDM -FKM
YELLOW BRASS BODY
AISI 304 STAINLESS STEEL SLEEVE WITH LASER WELDED FIXED CORE

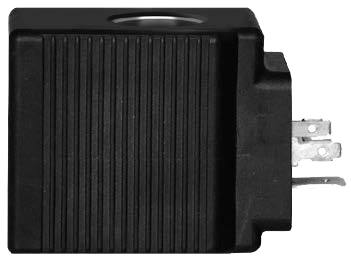

COIL 30 MM Ø14

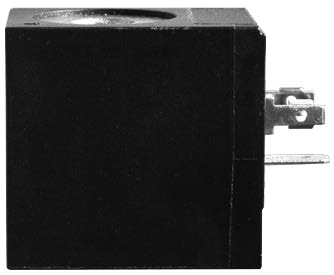

36 MM Ø14 CLASS H COIL (180°C)
IP65 PROTECTION CLASS
DESIGNED FOR PROFESSIONAL HYDRAULIC SYSTEMS WHERE THE SOLENOID VALVE MUST BE OPENED EVEN WITHOUT CIRCUIT PRESSURE
PS: 20 BAR
TS: depend on the type of gasket used
Do not require a minimum inlet pressure to work
IP65 protection class
Designed for heavy duty where the coil is particularly stressed
High diffrential opening pressure with big passing hole
Coil insulated from humidity
Thermohydraulic systems, autoclaves, machine tool cooling systems, washing systems, irrigation systems, fire prevention systems, sanitation systems, pressure washers.
The main construction components of the solenoid
valves of the 20000 series are:
